Without the constraints of time and space,
delivering X-ray images and artificial intelligence readings.
Rechargeable battery on board
Tube Stand
After Set Size (mm): 560 x 1025 x 900/1600
Total weight 45KG
SmartPDX™ Specification
|
|
EPX-F1600 |
EPX-F2400 |
EPX-F2800 |
EPX-F3200 |
EPX-F4000 |
EPX-F5000 |
|||
|
Maximum Output Power |
1.6kW |
2.4kW |
2.8kW |
3.2kW |
4kW |
5kW |
|||
|
Generator Frequency |
100kHz |
70kHz |
70kHz |
70kHz |
70kHz |
70kHz |
|||
|
kV Range |
40~90kV |
40~100kV |
40~120kV |
40~100kV |
40~110kV |
50~110kV |
|||
|
mA Range |
12~30mA |
16~40mA |
12~40mA |
25~60mA |
20~80mA |
20~100mA |
|||
|
mAs Range |
0.4~100mAs |
||||||||
|
Focal Spot |
1.2mm*1.2mm |
1.2mm*1.2mm |
1.2mm*1.2mm |
2.0mm*2.0mm |
1.8mm*1.8mm |
1.8mm*1.8mm |
|||
|
Target Angle |
19˚ |
16˚ |
16˚ |
16˚ |
15˚ |
15˚ |
|||
|
Anode Heat Storage |
10kHU |
50kHU |
50kHU |
40kHU |
42kHU |
42kHU |
|||
|
Input Voltage |
110V/220V |
110V/220V |
110V/220V |
200V~240V |
200V~240V |
200V~240V |
|||
|
Phase/Frequency |
Single / 50~60Hz |
||||||||
|
Dimension (mm) |
335*153*170 |
360*200*190 |
360*200*190 |
360*200*190 |
360*200*190 |
360*200*190 |
|||
|
Packaging Size (mm) |
520*400*330 |
||||||||
|
Weight |
6.8kg |
11kg |
12kg |
12kg |
12kg |
12kg |
|||
|
G-Weight |
20kg |
22kg |
22kg |
22kg |
22kg |
22kg |
|||

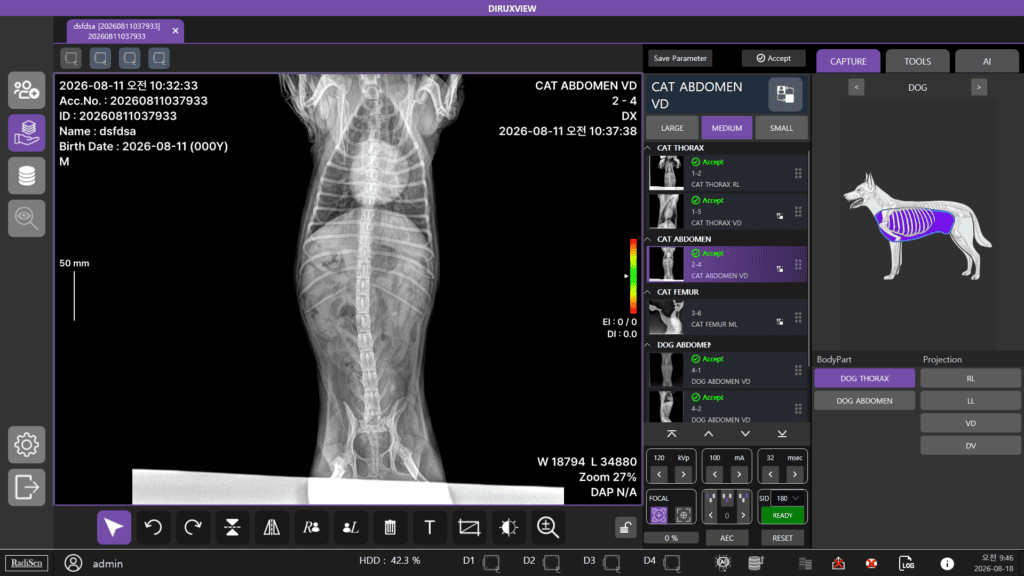

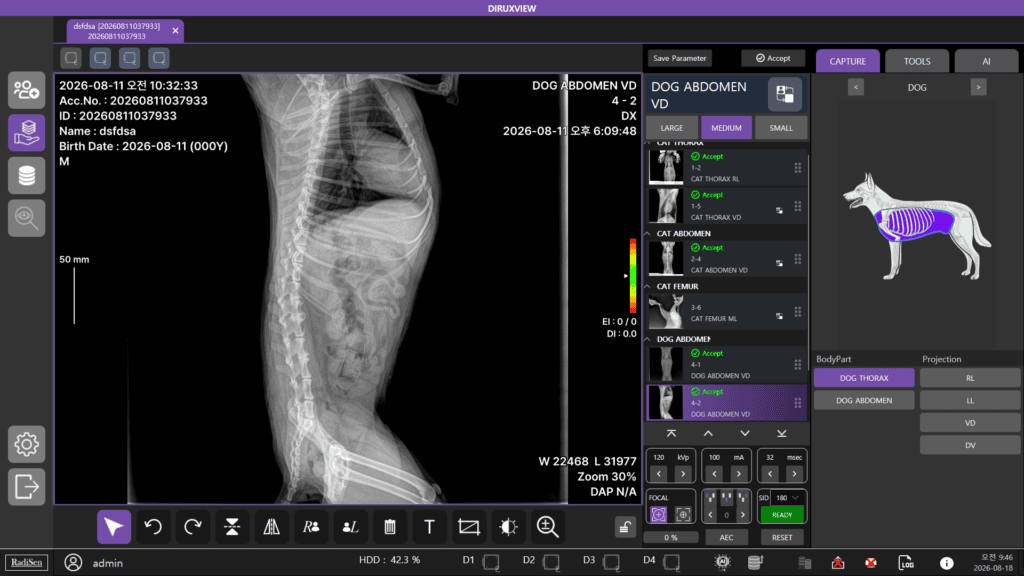

DiRuxView™
X-ray console viewer with artificial intelligence
Cloud Based Solution
Fast dicom sending and receiving
Easy patient registration/management
Support for a wide range of image processing features
Pedra™
Flat panel X-ray detector for digital radiology
Global Certification
CE, FDA, Taiwan FDA, Korea FDA
Wireless and
Wired version
14'x17' and
17'x17' model
Scintillator
Gd₂O₂S:Tb and CsI:Tl
Pixel Size
140um
Voltage Range
40~150Kvp
PEDRA-17F® Specification
| Model and Parameters | PEDRA-17FG | PEDRA-17FC | |
| Scintillator | Gd₂O₂S:Tb | CsI:Tl | |
| Sensor | Pixel Size | 140um | |
| Pixel Matrix | 3072 x 3072 | ||
| Effective Area | 427.8 x 427.8 mm | ||
| Effective Array | 3056 x 3056 | ||
| Image Performance | Spatial Resolution | 3.4 lp/mm | |
| ADC Resolution | 16 bits | ||
| X-ray Voltage Range | 40 to 150 Kvp | ||
| X-ray Generator Interface | Auto Trigger (AED Mode) | ||
| Mechanical | Weight | Gd₂O₂S:Tb / 3.40 Kg | CsI :TI / 3.50 kg |
| Dimension | ISO4090 Cassette Size (460x460x15mm) | ||
| Communication | Wired | Gigabit Ethernet (1000BaseT) | |
| Sync. Out Port | 2 port / TTL (0~5.0V) | ||
|
Operating Software (Console S/W) |
Windows 10 Supports 32/64bits Windows |
||
| Power / Environment | Wired | DC +15V | |
| Environment | T(10~+40)/H(20~75%)/P(70~106KPa) | ||
PEDRA-1417M® Specification
| Model and Parameters | PEDRA-1417MG | PEDRA-1417MC | |
| Scintillator | Gd₂O₂S:Tb | CsI:Tl | |
| Sensor | Pixel Size | 140um | |
| Pixel Matrix | 2500 x 3052 | ||
| Effective Area | 347.8 x 425.04mm | ||
| Effective Array | 2484 x 3036 | ||
| Image Performance | Spatial Resolution | 3.4 lp/mm | |
| ADC Resolution | 16 bits | ||
| X-ray Voltage Range | 40 to 150 Kvp | ||
| X-ray Generator Interface | Automatic Trigger (AED mode) | ||
| Mechanical | Weight | Gd₂O₂S:Tb / 3.0 Kg | CsI / 3.2 kg |
| Dimension | ISO4090 Cassette Size (384x460x15mm) | ||
| Communication | Wired | Gigabit Ethernet (1000BaseT) | |
| Wireless | IEEE802.11n/2.4 or 5Gbps | ||
| Sync. Out Port | 2 port / TTL (0~5.0V) | ||
| Operating Software (Console S/W) |
Windows 10 Supports 32/64bits Windows |
||
| Power / Environment | Wired / Wireless |
Wired: DC +15V Wireless: Up to 1 pack (Battery/12.6V/5 hours) |
|
| Environment | T(10~+40)/H(20~75%)/P(70~106KPa) | ||
